Cayin T01 Audio Motherboard for N6ii DAP with PCM1792 DAC Details and Price

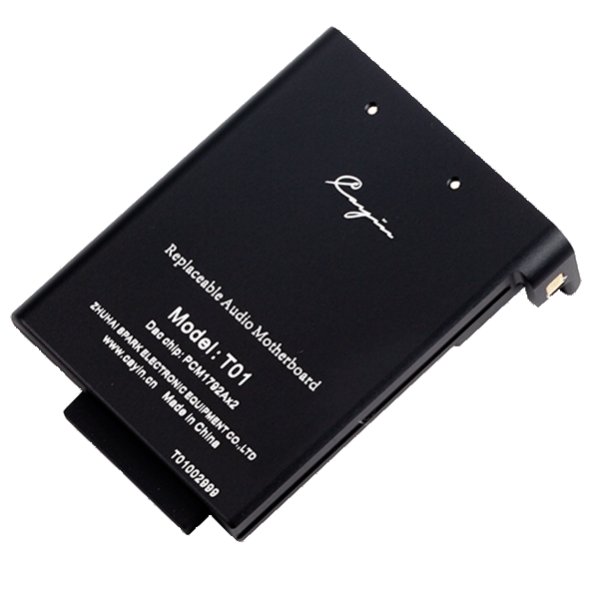

Cayin T01 Audio Motherboard for N6ii DAP with PCM1792 DAC Cayins latest Audio Motherboard the T01 is designed around the PCM-1792 DAC chipset from Texas Instrument. Each Audio Motherboard deploys two DAC chipset in current output. The fully differential amplification circuit compromise of 4 channels I/V Converter and four OPA162 as headphone amplifier in parallel offering up to 245mW into 32Ω unbalanced and 530mW balanced. The Volume control of T01 is conducted in analogue domain through two PGA2311A digitally controlled analogue volume control microprocessor. T01 is a tribute to N6 the first Cayin DAP that dated all the way back to Dec 2014. This is a significant advancement from Cayin N6 and N6mod audio circuit. T01 will decode PCM up to 24Bit/192kHz and DSD64. It can provide up to 8.5 hours continuous playback on single-ended phone out and around 7.5 hours on balanced phone out. *Image below for illustration purpose only N6ii player not included* Features T01 replaceable Audio Motherboard for N6ii (player not included) Dual PCM1792A DAC chip Hardware decode DSD up to DSD256 PCM up to 24Bit/192kHz Dual low-noise high precision digitally controlled stereo analogue volume control PGA2311U Parallel headphone amplification with Four OPA1622 provides up to 530mW per channel at 32Ω loading Fully differential design with quadruple premium grade I/V converters User adjustable 4.4mm and 3.5mm line out output level

Review This Product

Best Price: £289.00 from Advanced MP3 Players

Stockist Catalogue Product Name Price
Advanced MP3 Players Cayin T01 Audio Motherboard for N6ii DAP with PCM1792 DAC £289.00
